SR2-430
Type: 17" PS Inspection Slitter Rewinder
Year: 2021
Condition: new
Serial number: 3221

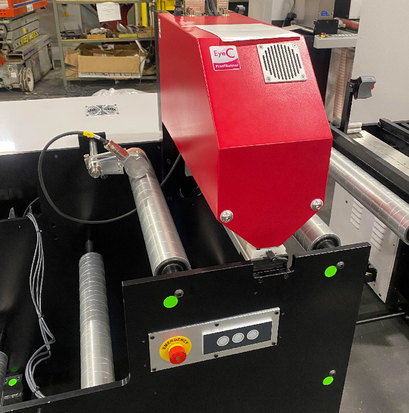

This machine features an EyeC vision system mounted on a standalone module. It is a great entry-level vision-enabled machine that's ideal for economical lower volume pressure-sensitive label finishing.
It's a one-step Inspection Slitter Rewinder that delivers high-quality finishing. It handles standard and filmic pressure-sensitive labels at an impressive running speed.
Features
- ⌀3″ (76mm) unwind shaft, cantilevered
- Magnetic particle brake unwind
- Open-loop unwind taper torque control
- Primary splicing table with manual clamping
- Ergonomic operator inspection area designed for optional vision system
- Automatic web guide with edge sensor for opaque and clear materials
- Infeed draw roll servo-driven
- Manual actuated silicone nip roll
- Secondary splicing table with manual clamping
- Rotary shear slitter cartridge
- ⌀3″ (76mm) flange-mounted, rewind shaft
- Servo-motor-driven simplex rewind
- Removable rewind shaft front support
- Closed-loop rewind tension control
- Operator-HMI with job storage
- Programmable batch counter for labels, or any length unit
- Remote diagnostics via ethernet
- Max. production speed 1000fpm (305m/min)
